According to DIN EN 733, rated pressure up to PN 16, volute housing with axial inlet.

Pumped liquid: organic heat transfer oils.

Main fields of application: Heat transfer technology (community heating, marine and offshore engineering, chemical, food, rubber industry, asphalt/tar industry, hydrocarbons preparation, soap/detergents, wood industry etc.)

Construction features:

• Main dimensions and rated output acc. to DIN EN 733

• Base plate design (pump and motor mounted on a base plate)

• Dry installation

• Horizontal installation

• Bearing bracket design

• Spacer coupling (optional)

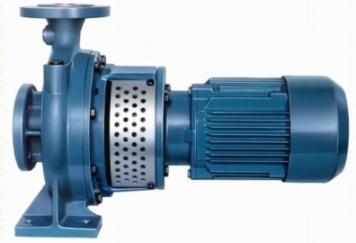

Centrifugal pump based on DIN EN 733, rated pressure up to PN 10, volute housing with axial inlet, motor attached to pump via flange or lantern.

Pumped liquid: Pure water, industrial water, sea water, condensate, oils, brines, lyes, hot water

Main fields of application: For cooling and heating circulating systems, water supply, water treatment, irrigation systems, sea water desalination, dust separation and spray-coat plants, air conditioning, cooling, swimming pool and industrial techniques

Construction features:

• Rated output acc. to DIN EN 733

• Block design (Motor attached to pump via flange or lantern)

• Dry installation

• Vertical installation

• Horizontal installation

• Stub shaft für IEC motor

• 2-stage pump type at defined sizes

Centrifugal pump based on DIN EN 22858/ISO 2858, rated pressure up to PN 25, volute housing with axial inlet, motor attached to pump via flange or lantern.

Pumped liquid: For handling aggressive or non aggressive, cold, pure or with solid contents, also viscous liquids, heat transfer liquids

Main fields of application: Used in the petrochemical and chemical industry, beverage and food industry, process engineering, environmental and wastewater technology, marine and offshore engineering, surface technology

Construction features:

• Main dimensions and rated output acc to DIN EN 22858/ISO 2858

• Technical execution acc. DIN EN ISO 5199/ISO 5199

• Base plate design (pump and motor mounted on a base plate)

• Horizontal installation

• Bearing bracket design

• Spacer coupling (optional)

• With shaft sealing

Centrifugal Pump based on DIN EN 733, rated pressure up to PN 10, suction and discharge branch arranged parallel across from each other, motor attached to pump via flange or lantern.

Pumped liquid: Pure water, industrial water, sea water, condensate, oils, brines, lyes, hot water

Main fields of application: For cooling, heating and circulating systems, water supply, water treatment, desalinization, dust separation and spray-coat plants, air conditioning, cooling, swimming pool and industrial techniques

Construction features:

• Rated output acc. to DIN EN 733

• Block design (Motor attached to pump via flange or lantern)

• In-line design (suction and discharge branch in-line arranged)

• Dry installation

• Vertical installation

• Horizontal installation

• Stub shaft für IEC motor

• 2-stage pump type at defined sizes

• With shaft sealing

Based on DIN EN 733, rated pressure up to PN 16, immersed vertically in tank.

Pumped liquid: Lube and sealing oil, hydraulic oil.

Main fields of application: Lube and sealing oil supply to turbines, generators, large compressors and heavy gear sets.

Construction features:

• Rated output acc. to DIN EN 733

• In-tank installation

• Vertical installation

For emulsion applications in machine tool building up to 120 bar.

Pumped liquid: Oil-in-water emulsions, grinding oils, cutting oils, collant lubricant solutions.

Main fields of application: Machine tool industry.

Construction features:

• Block design (Motor attached to pump via flange or lantern)

• Dry installation

• In-tank installation

• Vertical installation

• Horizontal installation

• Self - priming

• With shaft sealing

For special applications, like non-lubricating liquids and a maximum differential pressure of up to 25 bar.

Pumped liquid: Non- or mal-lubricating, slightly abrasive, corrosive.

Main fields of application: Process engineering, power engineering, environmental engineering, marine and offshore engineering.

Construction features:

• Base plate design (pump and motor mounted on a base plate)

• Dry installation

• Vertical installation

• Horizontal installation

• Self - priming

• With shaft sealing

• With magnetic drive

For small flow rates, maximum differential pressure of up to 40 bar, especially well suited for pumping fuel oils.

Pumped liquid: For handling lubricating liquids without any abrasive components in particular lube oils, hydraulic oils and light fuel oils in all industrial fields of application. The pump liquids may not chemically attack the pump material.

Main fields of application:​​​​​​ Oil-fired systems, hydraulic installations, mechanical engineering, general industrial technologies, chemical and petrochemical industries, marine and offshore engineering, lube oil applications.

Construction features:

• Pedestal mounting

• Dry installation

• In-tank installation

• Vertical installation

• Self - priming

• With shaft sealing

• Horizontal installation and Bulkhead mounting (AFI, AFT and AFM only)

Vertical installation, for lubrication-oil applications with medium flow rates, rated pressure up to 16 bar.

Pumped liquid: Hydraulic oils, synthetic hydraulic liquids, native oils, lubricating oils

Main fields of application: Lube oil supplying, general industrial technologies

Construction feature:

• In-tank installation

• Vertical installation

For lubrication-oil applications with small flow rates, rated pressure up to 16 bar.

Pumped liquid: For handling lubricating liquids without any abrasive components in particular lube oils, hydraulic oils and light fuel oils in all industrial fields of application. The pump liquids may not chemically attack the pump material.

Main fields of application: Oil-fired systems, hydraulic installations, mechanical engineering, general industrial technologies, chemical and petrochemical industries, marine and offshore engineering, lube oil applications

Construction features:

• Bulkhead mounting

• Dry installation

• Horizontal installation

• Self - priming

• With shaft sealing

Motor attached directly to pump via a flange or lantern.

Pumped liquid: Low to highly viscous liquids, pasty, neutral or aggressive, pure or abrasive, gaseous or tending to froth, also with fibrous and solids content

Main fields of application: Sewage and environmental engineering, chemical and petrochemical industries, food and beverages industry, paper and pulp industry, soap and fats industry, dye and paint industry, plastic and ceramics industry, marine and offshore engineering, agriculture

Construction features:

• Block design (Motor attached to pump via flange or lantern)

• Dry installation

• Vertical installation

• Horizontal installation

• Self - priming

• Reversible pumping

• 2 / 3 lobe geometry

Pumped liquid: Low to highly viscous liquids, pasty, neutral or aggressive, pure or abrasive, gaseous or tending to froth, also with fibrous and solids content

Main fields of application: Sewage and environmental engineering, chemical and petrochemical industries, food and beverages industry, paper and pulp industry, marine and offshore engineering, agriculture

Construction features:

• Base plate design (pump and motor mounted on a base plate)

• Pedestal mounting

• Dry installation

• Pump drive directly coupled or by gear or belt transmission

• Horizontal installation

• Self - priming

• Dry Self - priming

• Reversible pumping

• Sealingless and valveless
